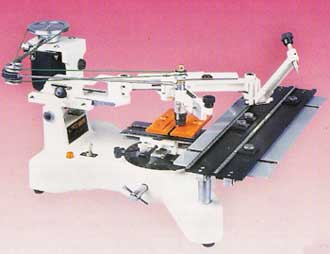

This model is capable of deep engraving on plastic and metal materials. Basically it is a P type series model equipped with a motor and spindle. This is the most popular general purpose model in the P series featuring low price and excellent all-round performance.

The PM-3 has a very wide application range extending from personal accessories to machinery components, display plaques for electrical equipment, sign boards in hotels and stores, key holders, lighters, watches and so on.

By fitting the diamond point attachment (POINTS) this machine can effect the same smooth diamond engraving performance as the P model. The PM-3 is extremely easy to operate, even inexperienced workers, children and so on can engrave attractive letters, marks etc. on all types of objects.


  Specifications

  • Pantograph  - 1/2 to 1/7 in 21 stages
  • Spindle  - 15,000rpm 3ø straight shaft
  • Vice (Max. opening) - 170mm
  • (Max. forward-back movement) - 140mm
  • (Max. lateral movement) - 60mm
  • Max. engraving area - 200 x 125 at 1/2 setting
  • (Distance from cutter tip to frame) - 67mm
  • (Distance from cutter tip to BDC of vice) - 25.5mm
  • (Max. clamp width) - 160mm
  • Copy table - 150 x 400mm
  • Motor - 100V 40W
  • Dimensions - 450(W) x 500(L) x 220(H)mm
  • Net weight - 14.9kg
  • Packing size & weight 565(W) x 620(L) x 350(H)mm/18kg
