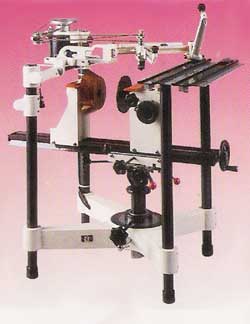

The structure of the PM-5C is higher than the PM-5 model, this means that it can engrave on objects with a greater overall height (over 150mm).

The pantograph and spindle are the same as those used for the very popular, PM-3 and PM-5 models which have earned a high reputation.

A jack is supplied as standard equipment and the vice can be raised or lowered to bring the workpiece into the correct position accurately and swiftly.

• Pantograph - 1/2 to 1/7 in 21 stages
• Spindle - 15,000rpm 3ø straight shaft
• Vice (Max. opening) - 360mm
• (Max. forward-back movement) - 340mm
• (Max. lateral movement) - 100mm
• Max. engraving area - 200 x 125 at 1/2 setting
• (Distance from cutter tip to frame) - 280mm
• (Distance from cutter tip to BDC of vice) - 125mm
• (Max. clamp width) - 360mm
• Copy table - 150 x 400mm
• Motor - 100V 40W
• Dimensions - 450(W) x 470(L) x 610(H)mm
• Net weight - 41kg
• Packing size & weight - 550(W) x 750(L) x 720(H)mm/50.5kg
